Brad Point Drill Bits

A Brad Point Drill should provide the cleanest, straightest, and most accurately sized hole in wood of any reasonably priced tool on the market today... Read More

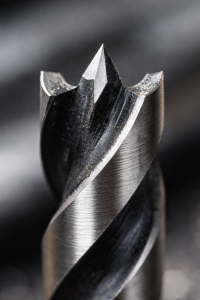

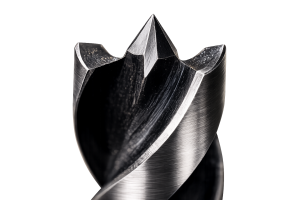

Brad Point Drill Bit Point Detail

Why Use Brad Point Drills?

A Brad Point Drill should provide the cleanest, straightest, and most accurately sized hole in wood of any reasonably priced tool on the market today. The brad in the center of the point allows accurate positioning when starting a hole even if the hole is not 90 degrees from the surface. The outlining spurs sheer the wood grain and leave a clean edge around the opening of the hole eliminating the need for sanding. The spurs continue to sheer the wood while drilling and produce an accurately sized hole. In most woods, the spurs also help to produce a cleaner edge when drilling through the backside of the wood.

Brad Point Drill Bit Tips - Hardwood and Softwood

There are basically two types of brad point designs.* One works best in hardwoods and the other works best in softwoods. Brad Point Drills that are specifically designed for softwood produce too much heat and are hard to push in hardwoods. Although Brad Point Drills specifically designed to cut hardwood will cut softwood, the aggressive cutting edges have a tendency to lift the weak grains of the softwood resulting in a ragged edge around the opening of the hole.

*Most of the Brad Point Drills we sell and show in our catalog are specifically designed for hard wood and work fine for most applications.

The difference between the two types of points is in the design of the outlining spurs. The Brad Point Drills that work best in softwood have rounded spurs, which help to hold the grains of the wood down while sheering them off. There is a certain amount of rubbing that occurs between the outlining spur and the wood before it is cut. The outlining spurs on Brad Point Drills for hardwood come to a sharp point and simply cut the stronger grains off clean. No rubbing occurs and therefore no unnecessary heat is produced by the cutting action.

We often vary the length of the brad to achieve different results. A longer brad can be used when a hole needs to be drilled on an angle instead of straight into the wood. Drilling as much as 45 degrees or even 60 degrees from vertical is possible by extending the length of the brad. A shorter than normal brad may be required in the case of a hole that needs to be drilled close to but not through the back of the material.

Brad Point Drills also work well in most plastics, nylon, fiber, fiberglass and many other man made materials.

Brad-Point Bits

Filter
Set Descending Direction

43 Items

per page
View as Grid List
  1. Fuller 15 Pc Brad Point Drill Bit Kit SKU: BRD-5014
    $260.36
    Add to Wish List
    Add to Compare
  2. Fuller 29 Pc Brad Point Drill Bit Kit SKU: BRD-5028
    $478.76
    Add to Wish List
    Add to Compare
  3. Fuller 5/64 in. Brad Point Drill Bit SKU: BRD-0078
    $15.65 As low as $12.52
    Add to Wish List
    Add to Compare
  4. Fuller 5/64 in. Long Brad Point Drill Bit SKU: LBRD-0078
    $20.65
    Add to Wish List
    Add to Compare
  5. Fuller 3/32 in. Brad Point Drill Bit SKU: BRD-0093
    $9.50 As low as $8.55
    Add to Wish List
    Add to Compare
  6. Fuller 3/32 in. Long Brad Point Drill Bit SKU: LBRD-0093
    $19.18
    Add to Wish List
    Add to Compare
  7. Fuller 7/64 in. Brad Point Drill Bit
    Rating:
    80%
    1  Review
    SKU: BRD-0109
    $9.95 As low as $7.96
    Add to Wish List
    Add to Compare
  8. Fuller 1/8 in. Brad Point Drill Bit SKU: BRD-0125
    $10.44 As low as $8.35
    Add to Wish List
    Add to Compare
  9. Fuller 1/8 in. Long Brad Point Drill Bit SKU: LBRD-0125
    $23.37
    Add to Wish List
    Add to Compare
  10. Fuller 9/64 in. Brad Point Drill Bit SKU: BRD-0140
    $10.88 As low as $8.70
    Add to Wish List
    Add to Compare
  11. Fuller 9/64 in. Long Brad Point Drill Bit SKU: LBRD-0140
    $27.06
    Add to Wish List
    Add to Compare
  12. Fuller 5/32 in. Brad Point Drill Bit SKU: BRD-0156
    $11.00 As low as $9.90
    Add to Wish List
    Add to Compare
  13. Fuller 5/32 in. Long Brad Point Drill Bit SKU: LBRD-0156
    $27.06
    Add to Wish List
    Add to Compare
  14. Fuller 11/64 in. Brad Point Drill Bit SKU: BRD-0171
    $12.19 As low as $10.97
    Add to Wish List
    Add to Compare
  15. Fuller 11/64 in. Long Brad Point Drill Bit SKU: LBRD-0171
    $27.97
    Add to Wish List
    Add to Compare
  16. Fuller 3/16 in. Brad Point Drill Bit SKU: BRD-0187
    $12.78 As low as $11.50
    Add to Wish List
    Add to Compare
  17. Fuller 3/16 in. Long Brad Point Drill Bit SKU: LBRD-0187
    $27.84
    Add to Wish List
    Add to Compare
  18. Fuller 13/64 in. Brad Point Drill Bit SKU: BRD-0203
    $13.54 As low as $12.19
    Add to Wish List
    Add to Compare
  19. Fuller 13/64 in. Long Brad Point Drill Bit SKU: LBRD-0203
    $31.33
    Add to Wish List
    Add to Compare
  20. Fuller 7/32 in. Brad Point Drill Bit SKU: BRD-0218
    $14.34 As low as $12.91
    Add to Wish List
    Add to Compare
  21. Fuller 7/32 in. Long Brad Point Drill Bit SKU: LBRD-0218
    $31.61
    Add to Wish List
    Add to Compare
  22. Fuller 15/64 in. Brad Point Drill Bit SKU: BRD-0234
    $14.82 As low as $13.34
    Add to Wish List
    Add to Compare
  23. Fuller 1/4 in. Brad Point Drill Bit SKU: BRD-0250
    $16.96 As low as $13.57
    Add to Wish List
    Add to Compare
  24. Fuller 1/4 in. Long Brad Point Drill Bit SKU: LBRD-0250
    $31.61
    Add to Wish List
    Add to Compare
  25. Fuller 17/64 in. Brad Point Drill Bit SKU: BRD-0265
    $16.96 As low as $15.26
    Add to Wish List
    Add to Compare
  26. Fuller 9/32 in. Brad Point Drill Bit SKU: BRD-0281
    $17.79 As low as $16.01
    Add to Wish List
    Add to Compare
  27. Fuller 19/64 in. Brad Point Drill Bit SKU: BRD-0296
    $18.91 As low as $17.02
    Add to Wish List
    Add to Compare
  28. Fuller 5/16 in. Brad Point Drill Bit SKU: BRD-0312
    $19.30 As low as $17.37
    Add to Wish List
    Add to Compare
  29. Fuller 21/64 in. Brad Point Drill Bit SKU: BRD-0328
    $20.62 As low as $18.56
    Add to Wish List
    Add to Compare
  30. Fuller 11/32 in. Brad Point Drill Bit SKU: BRD-0343
    $22.86 As low as $20.57
    Add to Wish List
    Add to Compare
  31. Fuller 23/64 in. Brad Point Drill Bit SKU: BRD-0359
    $24.34 As low as $21.91
    Add to Wish List
    Add to Compare
  32. Fuller 3/8 in. Brad Point Drill Bit SKU: BRD-0375
    $25.10 As low as $22.59
    Add to Wish List
    Add to Compare
  33. Fuller 25/64 in. Brad Point Drill Bit SKU: BRD-0390
    $27.97 As low as $25.17
    Add to Wish List
    Add to Compare
  34. Fuller 13/32 in. Brad Point Drill Bit SKU: BRD-0406
    $28.42 As low as $25.58
    Add to Wish List
    Add to Compare
  35. Fuller 27/64 in. Brad Point Drill Bit SKU: BRD-0421
    $30.21 As low as $27.19
    Add to Wish List
    Add to Compare
  36. Fuller 7/16 in. Brad Point Drill Bit SKU: BRD-0437
    $31.33 As low as $28.20
    Add to Wish List
    Add to Compare
  37. Fuller 7/64 in. Long Brad Point Drill Bit SKU: LBRD-0109
    $22.93
    Add to Wish List
    Add to Compare
  38. Fuller 29/64 in. Brad Point Drill Bit SKU: BRD-0453
    $33.46 As low as $30.11
    Add to Wish List
    Add to Compare
  39. Fuller 15/32 in. Brad Point Drill Bit SKU: BRD-0468
    $33.75 As low as $30.38
    Add to Wish List
    Add to Compare
  40. Fuller 31/64 in. Brad Point Drill Bit SKU: BRD-0484
    $35.62 As low as $32.06
    Add to Wish List
    Add to Compare
  41. Fuller 1/2 in. Brad Point Drill Bit SKU: BRD-0500
    $42.34 As low as $38.11
    Add to Wish List
    Add to Compare
  42. Fuller 33/64 in. Brad Point Drill Bit SKU: BRD-0515
    $65.04 As low as $58.54
    Add to Wish List
    Add to Compare
  43. Snappy 5 mm Brad-Point Drill Bit SKU: MS-6005R
    $11.01
    Add to Wish List
    Add to Compare
